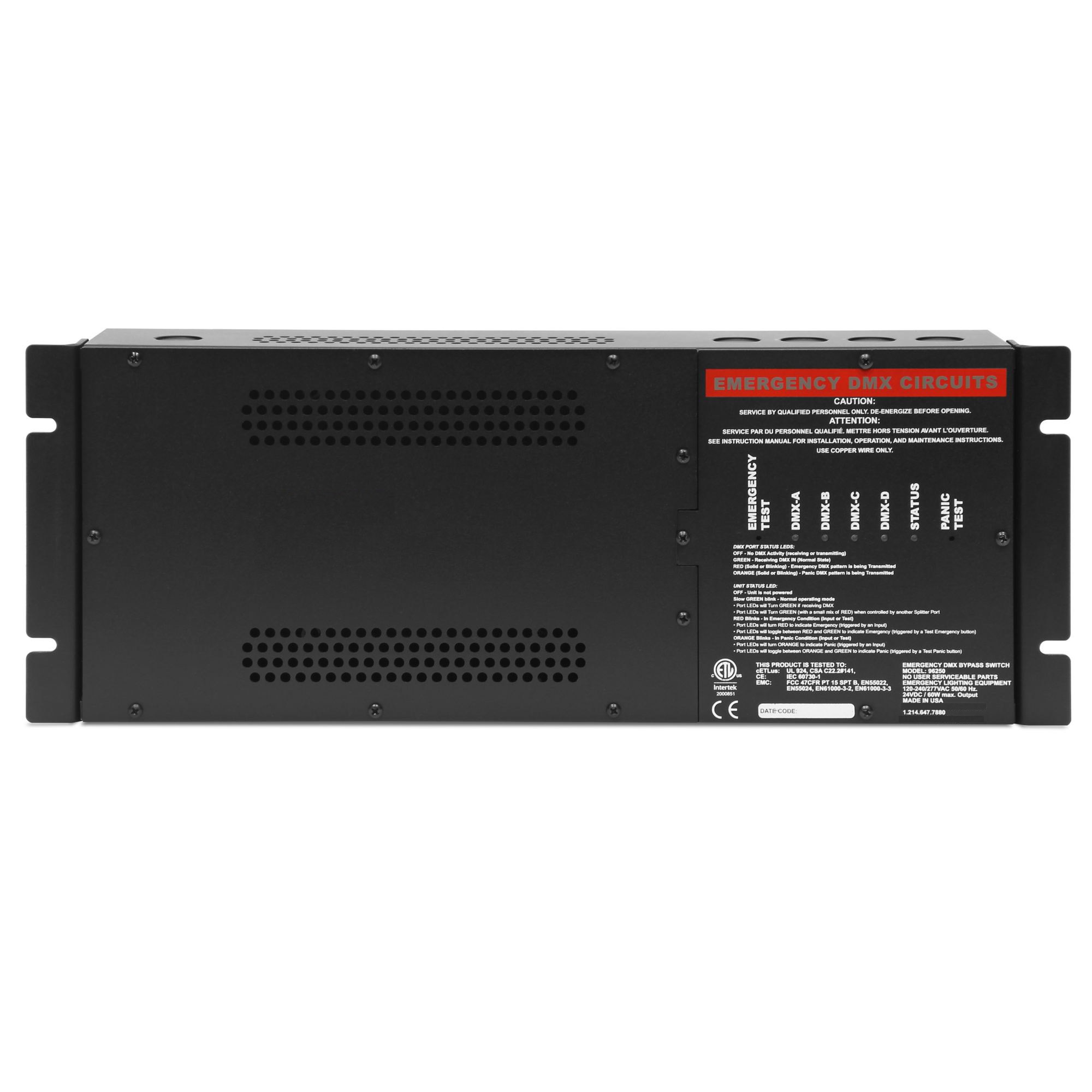

Each bypass unit handles up to four (4) individual universes of DMX or can be used as a DMX splitter handling 1 in 4 out, or 2 in 2 out routing scenarios. The bypass handles more than just emergency and has separate triggers for panic situations as well.


    Each state – panic or emergency, can be set to trigger “snap shot” loads or can be set to drive all loads on each DMX path to 100%. Each state (panic or emergency) can be triggered via normally open, normally closed dry contacts, or from a 12VDC signal. Once the state is returned to normal, the bypass returns loads to the DMX controller in a variety of different ways.

    These return states can be timed at 1 minute, 10 minutes, or can be set to return under intelligent timing whenvalid DMX inputs are sensed.


    • Intelligent emergency call and reinstatement modes
    • Accepts up to four (4) DMX universes
    • Emergency input
    • Panic input
    • Integrated DMX splitter with user-selectable operational settings
    • Emergency and panic test buttons
    • Durable, steel construction that easily mounts near lighting control panels or inside 19inch racks
    • Reversible ears for rack or wall mounting
    • Data connectors on screw terminals for ease of installation
    • Two year limited warranty
