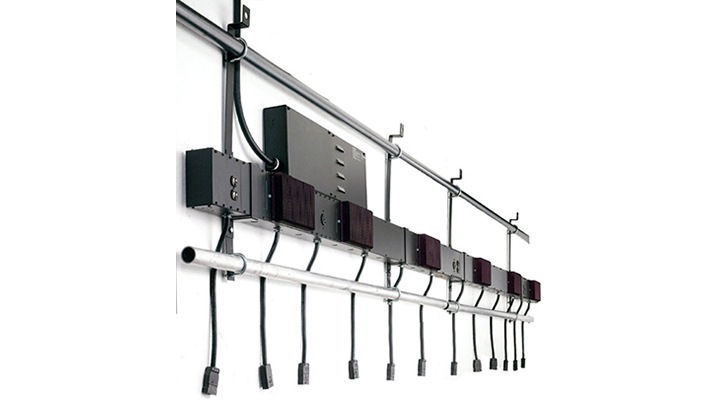

R21 RACEWAY (120V)


    The R21 Powered Raceway is a perfect extension of our C21 and A21 range of installed dimmer cabinets. Systems can be mixed and matched as needed to create a completely flexible lighting system to meet the needs of any installation. Our powered raceway features quiet convection cooled IGBT dimming for low lamp noise and reliable operation.


    Easily integrate of your entire lighting system over Ethernet with consoles, houselight systems and fixed dimming racks all connecting seamlessly over a network. The heart of the system is our powerful Raceway processor which mounts remotely in an easy to access auxiliary rack (auxiliary rack sold separately). One processor can control up to 96 dimmers over multiple raceways simplifying set up and operation. Each raceway can have a mixture of dimmed circuits and relay modules for a wide variety of applications. Several hanger options are available for pipe mount and wall mount applications to meet the needs of any installation.


    • DMX512 I/O
    • Simplified Data distribution over network
    • Remote processor option provides support for up to 96 dimmers and relays
    • Quiet convection cooled dual IGBT dimmer modules - 2400 Watts per module
    • Energy efficient – only a 2.5 volt insertion loss per dimmer module
    • Local focus buttons and status display
    • Dimmer modules transition time significanty reduces lamp sing
    • Dual relay modules for on/off operation - 20 Amps per module
    • Automatic Short Circuit protection
    • Wide range of load connector options
    • Integrates with C21 and A21 Dimmers
    • Dimmer Status reporting standard
    • Hangers available for Wall and pipe mount applications
    • Our "Z-Fold Tiered Packaging" is designed to accommodate the use of palette jacks and forklifts to transport the R21 Powered Raceway from our factory to your job site.
    • This unique shipment method also assures that your R21
    • Powered Raceway arrives at your project site scratch and dent free.
    • UL and cUL listed and labeled
    • Custom lengths and configurations are available
