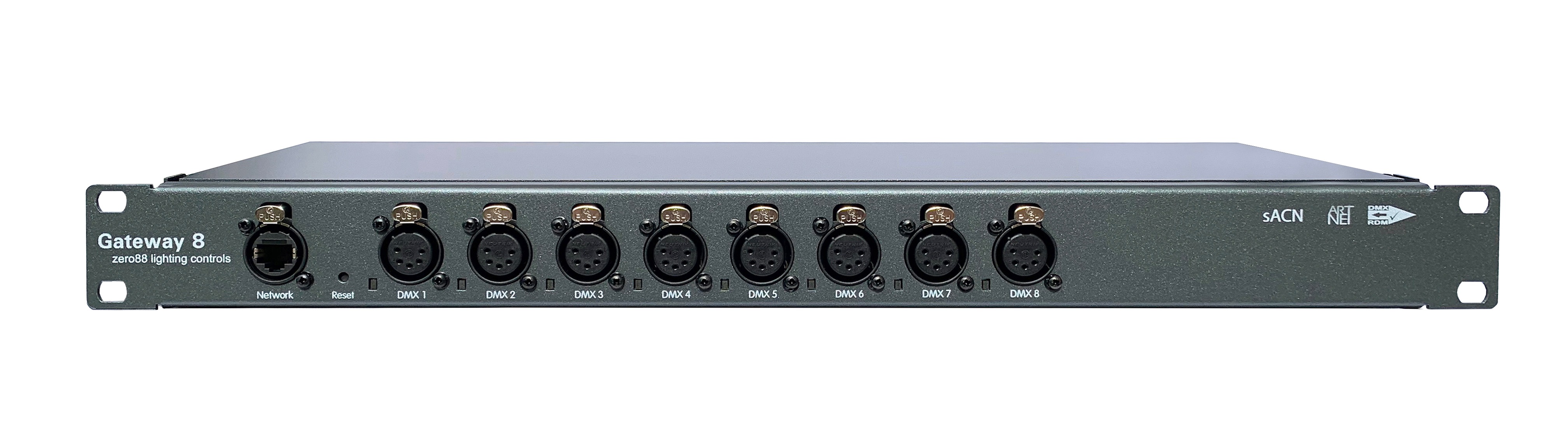

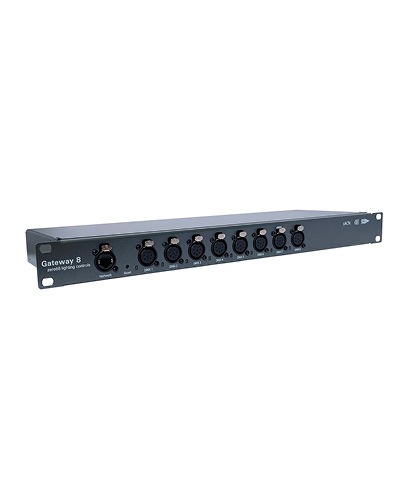

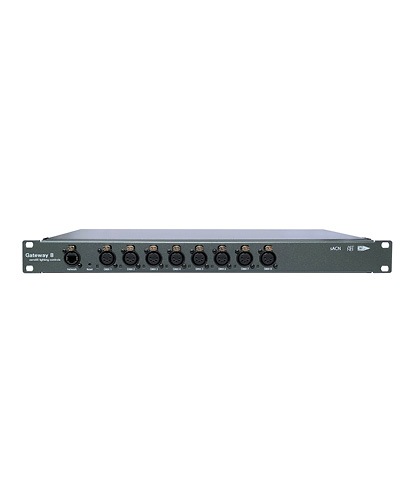

Gateway 8 provides flexible DMX / RDM data distribution in a slim (1RU) 19” format, converting eight universes of Ethernet (sACN or Art-Net) into DMX512/RDM.


    Gateway 8 is fully compatible with the latest protocols (sACN, Art-Net 4, LLRP, DMX & RDM), ensuring your distribution network is ready to meet your future demands. Gateway 8 is appropriate for permanent installations or as a flexible, adaptable rental & touring tool.


    When combined with any ZerOS console, Gateway 8 provides on-board configuration from the console, for a truly integrated system. Alternatively, the unit can be configured through an internal web server or via optional control software. DHCP enables automatic IP addressing; static IP and LLRP negotiation are also supported.


    The input is an EtherCON / RJ45 connector. The eight outputs are protected against electrical faults. All connectors are Neutrik parts.


    Gateway 8 is ideal for use alongside Splitter 8 and Gateway 4 to build a larger data distribution system.


    Available in EMEA & APAC only.



    • 10/100BaseT Ethernet input
    • 8 electrically protected outputs
    • Neutrik connectors
    • sACN, Art-Net, LLRP, DMX & RDM compatible
    • DHCP or static IP
    • Optional configuration from ZerOS consoles
    • Configuration via Web Browser
    • IEC power connector (90-250V AC)
    • CE compliant to all relevant standards

    Product Summary, Documentation and Downloads
