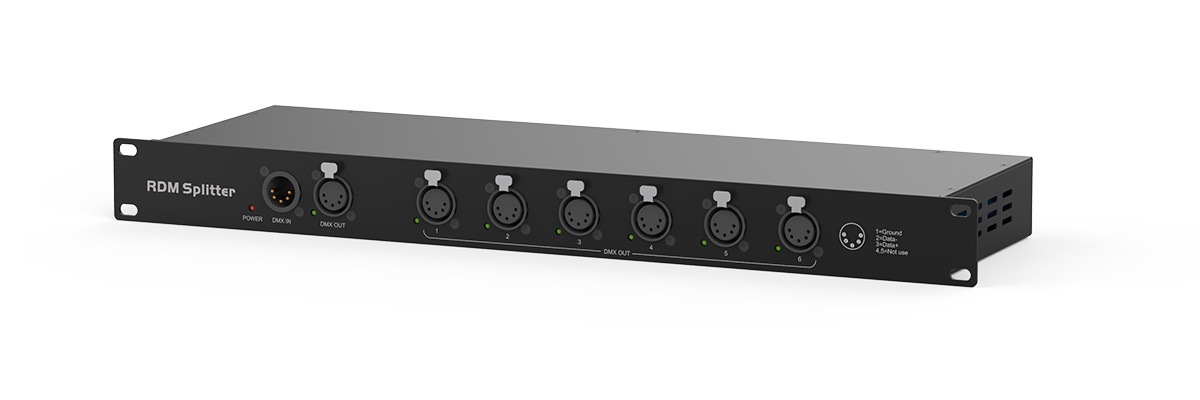

The RDM Splitter 6 is a 6-port, rackmount RDM “transparent” splitter designed for distribution of DMX-512A(RDM) signals in a lighting network. Easy to use with high quality XLR 5 pin signal connectors, this unit provides robust plug and play capabilities for the distribution of DMX within typical entertainment environments.

    The RDM Splitter 6 provides six buffered, opto-isolated outputs for connection to and control of DMX and RDM capable devices. Packaged into a 1U high rack mounting package it allows the splitter a to become a key part of your lighting installation. Power to the unit is provided via a locking PowerCon connector, ensuring power cannot accidentally be disconnected, helping you to safeguard your data distribution network against accidental power disconnection.




    • Compatible with both DMX-512A(RDM) and DMX-512(1990)
    • 1 U rack mount housing design
    • Signal In/Thru (XLR 5pin) front or rear
    • 6 ports optically isolated and buffered output (XLR 5 pin)
    • CE / ETL/cETL and FCC marked
    • Locking power connector with PowerCon power input
